MACHINE TOOL SAFETY WINDOWS

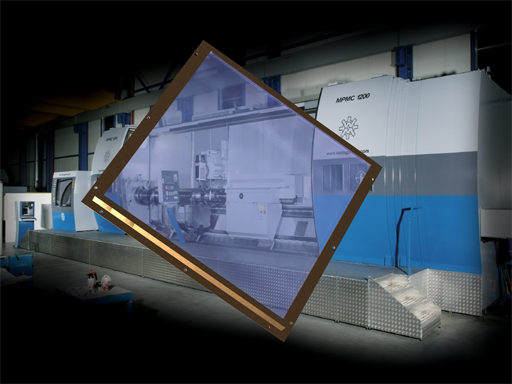

Polycarbonate window panes are used in machine tools to protect operating personnel against the risk of ejected parts.

Research has shown that unprotected polycarbonate can degrade after exposure to metal cutting fluids.

This can result in a significant reduction in the impact resistance of the polycarbonate within a relatively short time span – see Fig 1

However, they show a long term durability of up to 12 years if the polycarbonate is effectively protected on all sides against metal cutting fluids.

SicurTec offer a range of constructions which protect the polycarbonate from ageing, thereby retaining the impact resistance of the window.

Windows are manufactured to meet the requirements for impact resistance according to EN 12415 (turning machines) and EN 12417 (machining centres).

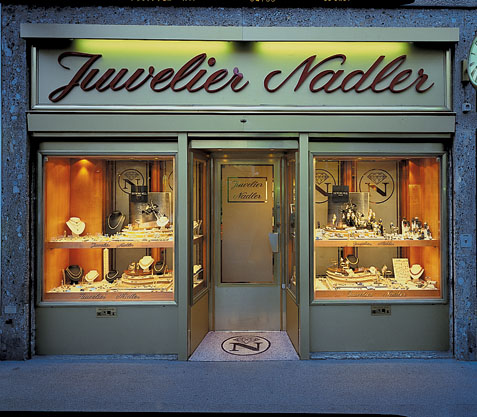

Various forms of speciality glass from SicurTec are to be found in jewellery shops, museums, banks, embassies etc.

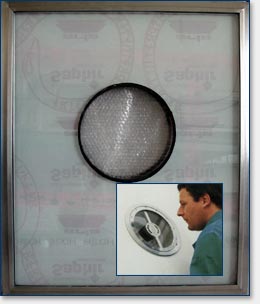

SicurTec protective windows can also be produced in special shapes – including for the installation of ‘Rotoclear’ spin windows

CONTACT DETAILS

DQR Precision Ltd
Unit 30, Moorside Business Park
Colchester, CO1 2ZF, UK

Tel +44 (0) 1206 797186
Fax +44 (0) 1206 797187
E-mail sales@dqr.co.uk

TOP OF PAGE

Our products and competitive advantages:
A range of solutions is possible through our flexible production systems

•	Glass-Air-PC. Distance spacer with dehumidifier
•	Glass-PU-PC. Completely flat, stress free, clear glass
•	Symmetrical and non symmetrical solutions

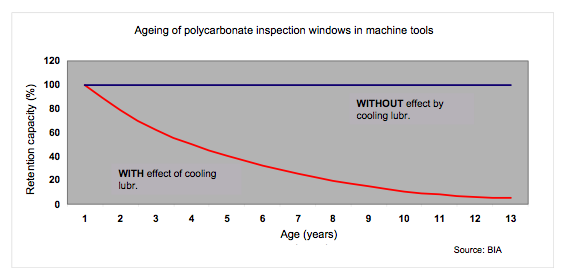

Fig 1

Therefore we offer:

•	Impartial advice
•	Scratch resistant Lexan Margard polycarbonate or scratch resistant, UV resistant foil bonded to polycarbonate on operator side
•	Tempered safety glass on machine side
•	Totally sealed stainless steel frame if required
•	Full edge sealing of window ensures highest possible protection from lubricants
•	Use of sealants which do not degrade polycarbonate
•	Ongoing development and testing in collaboration with Fraunhofer Institute (IWF) in Berlin
•	Very good price/performance ratio

Protected polycarbonate (WITHOUT effect of cooling lubricants or other aggressive products, edge seals on all sides);

Unprotected polycarbonate (WITH effect of cooling lubricants or other aggressive products, even if the influence is only partial).
